Housing
Base frame and hood made of stainless steel with integrated switch cabinet.
Boiler casing
Casing made of stainless steel 1.4571, electrically welded.
Electrical equipment
Control panel wired in accordance with VDE regulations (Association of German Electrical Engineers), visual water level indicator SiemensLOGO! PLC control, operating display, electronically controlled water level, heating element made of stainless steel, heating capacity adjustable in step.
Safety devices!
Overpressure safety valve (5bar or 10bar), overpressure limitation (mechanical), overpressure limitation (electronically), operational temperature limiter, electronically protection against water deficiency
Other devices
DREWS controller, pressure gauge, operating hour counter, temperature display, water level display min/max, illuminated controls, stainless steel fittings
All informations are based on a single unit PS300 without additional equipment!
Equipment for PS- steam generators
-
- stationary or mobile consoles,
- feed water vessels,
- condensate tanks,
- drain water vessels,
- automatic blow-down systems,
- water softening equipments,
- steam traps,
- steam superheater,
- steam distribution,
- steam valves,
- other equipment on request

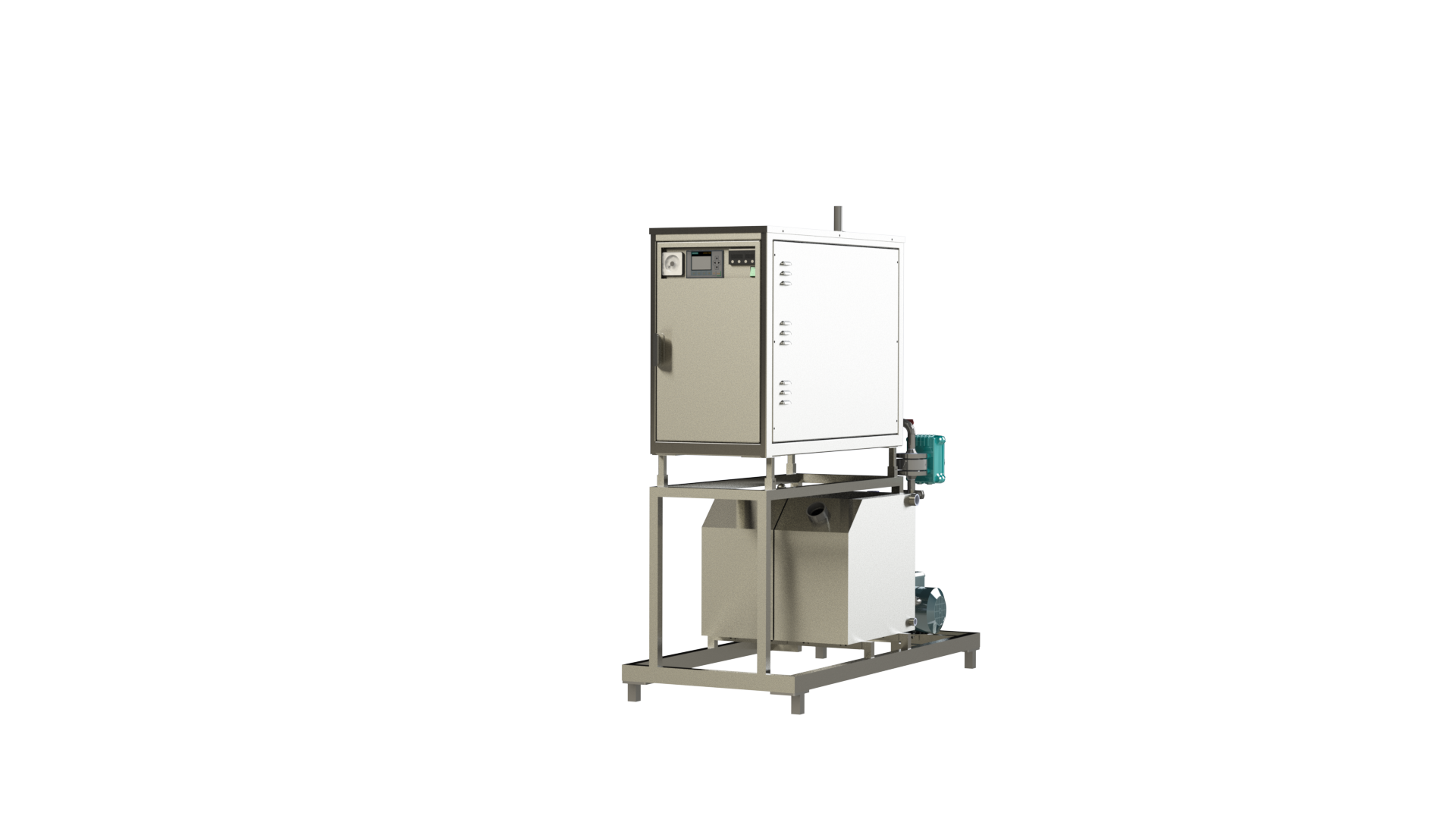

Multi-systems
Because of the individual variety of our modular system it is possible to combine several steam generators. As a result you get a multi-system with a higher steam-output.
Technical data
| Model | PS300-30 | PS300-40 | PS300-45 | |
| Electrical connection | ||||
| Input supply voltage | 400 V, 50 Hz, 3 Ph/PE | |||
| Heating boiler | 30 kW | 40 kW | 45 kW | |
| Total connection | approx. 30 kW | approx. 40 kW | approx. 45 kW | |
| Net protection | 50 A | 63 A | 80 A | |
| Outgoing signals | dry contacts: operation, fault (Additional messages on request) |
|||
| Incoming signals (optional and negotiable) |
Emergency OFF, remote start, external blowdown, etc. (dry contacts must be made available) |
|||
| Mechanical connection | ||||
| Steam outlet | ball valve ¾“ i | |||
| Water inlet | ½“ i | |||
| Draining | ball valve ¾“ i | |||
| Safety valve | 1“ i | |||
| Operating data | ||||
| max. operating temperature | 150°C / 180°C | |||
| max. operating pressure | 5 bar or 10 bar (blow-off safety valve)
Other pressures on request |
|||
| adjustable working pressure | 0-4 bar or 0-9 bar adjustable in increments of 0.1 bar Switching differential 0.2 bar under ideal conditions Switching differential with solid state relais +/- 0,02 bar Other pressures on request |
|||
| max. amount of steam | 42 kg/h | 56 kg/h | 63 kg/h | |
| water content to NW | 22 Liter | |||
| Dimensions | ||||
| Length | approx. 970 mm | |||
| Width | approx. 410 mm | |||
| Height | approx. 760 mm | |||
| Weight | approx. 90 kg (unfilled) | |||
